Hard Plastic Scrap Recycling Washing Line Беларусь

MOOGE

Has you covered utilizing their Hard Plastic Scrap Recycling Washing Line if you should be finding a reliable and reliable method to recycle difficult scrap is plastic? The merchandise is built to streamline the complete means of recycling hard scrap is synthetic ensuring top-notch output with only minimal effort.

The MOOGE Hard Plastic Scrap Recycling Washing Line is manufactured with durable materials to create certain performance is durable. The line includes a couple of key components, including a crusher, a washer, a device is obviously dewatering a heat dryer, and a combination system. Dozens of elements is built to work seamlessly together, providing an answer is entire recycling difficult scrap that synthetic.

The crusher may be the component certainly first the MOOGE Hard Plastic Scrap Recycling Washing Line. This revolutionary product was created to split up big aspects of difficult scrap is synthetic smaller, more pieces are manageable. Following the scrap is broken down, it is in reality fed in to the washer, helping to make use of water to fully clean the plastic and take away any dirt, debris, or any other contaminants.

After the plastic is washed, it truly is fed to the dewatering machine, which removes water is excess the material. It really is an essential the main recycling procedure because an excessive amount of water really make a difference the standard of the products is last. When the plastic is adequately dried, it really is fed in to the air is hot, which dries the item completely.

If the synthetic is actually dried and beaten up, it really is prepared for the step is obviously final the technique: collection. The MOOGE Hard Plastic Scrap Recycling Washing Line features a group system making this and task is not hard gather and store your recycled product. This method might be individualized to meet your specific needs, whether you would like an ability is large container or even an inferior, more solution that compact.

Among the list of primary items that are superb the MOOGE Hard Plastic Scrap Recycling Washing Line is its simplicity of good use. This method is very user-friendly, with a person interface is not difficult makes it simple to function and adjust as required. Additionally, the line was made to be energy-efficient, it to lessen waste and protect the environment to enable you to feel good about making use of.

Product Overview

PE/PP/ABS/PS (RIGID FORM )Bottle ,Bucket,Hollow Container Recycling Machine

This RIGID PE PP PLASTIC WASHING LINE is used to recycling the waste HDPE/LDPE/PP bottles and buckets, hollow container and so on. The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system. The waste dirty rigid pe pp bottles/buckets go through crushing, washing, drying, collecting process will turn to be clean flakes for further pelletizing. We also can customized the line components according to your special requirement.

Product Specification

Standard System (with 1 set washing tank)

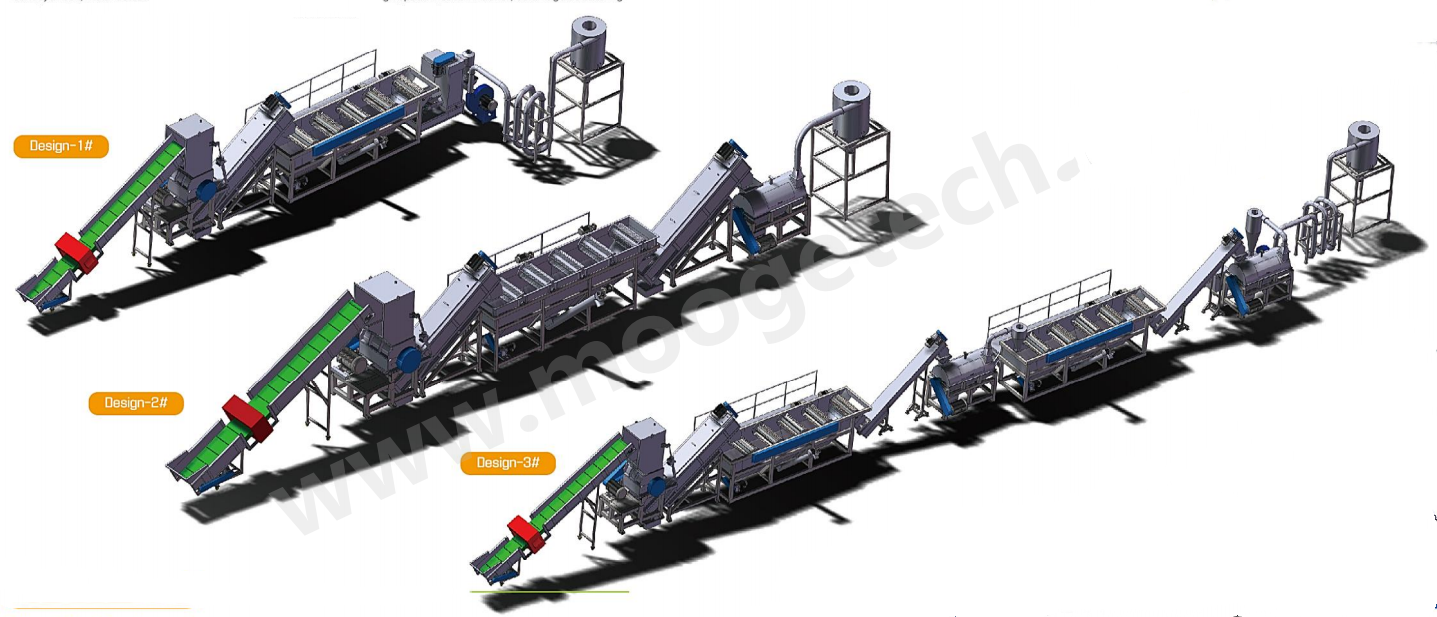

We can design the layout according to your requirements.

Model	Capacity	Installed Power	Water Supply	Area Required :m
MEB-300	300kg/hr	100KW	4-5m³/hr	20*4.5*5
MEB-500	500kg/hr	115KW	5-6m³/hr	20*4.5*5
MEB-1000	1000kg/hr	125KW	7-8m³/hr	23*5*5
MEB-1500	1500kg/hr	180KW	8-10m³/hr	25*5*5
MEB-2000	2000kg/hr	225KW	10-15m³/hr	28*5*5

Advanced System (with 2 set washing tank)

We can design the layout according to your requirements.

Model	Capacity	Installed Power	Water Supply	Area Required
MEB-300	300kg/hr	130KW	5-6m³/hr	38*4.5*5
MEB-500	500kg/hr	145KW	7-8m³/hr	38*4.5*5
MEB-1000	1000kg/hr	190KW	8-10m³/hr	42*5*5
MEB-1500	1500kg/hr	230KW	10-15m³/hr	45*5*5
MEB-2000	2000kg/hr	280KW	15-20m³/hr	45*5*5

Suitable Products

Details Images

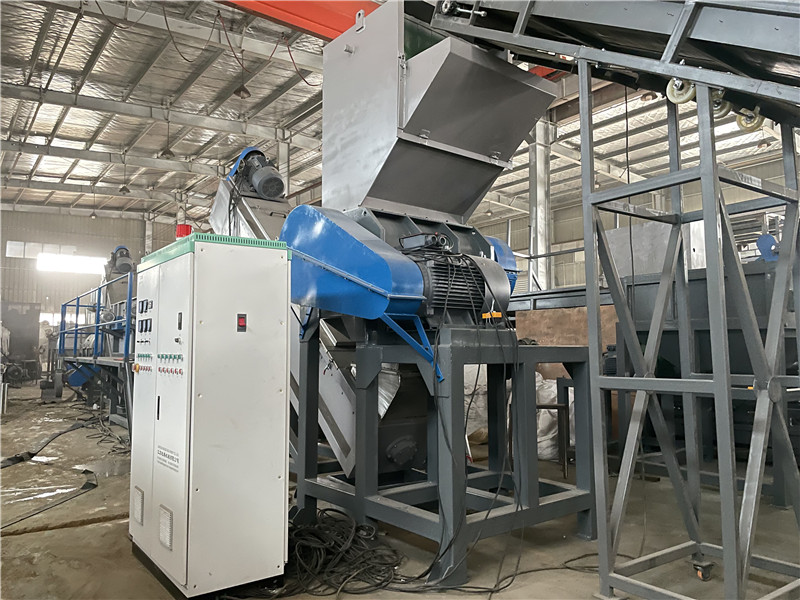

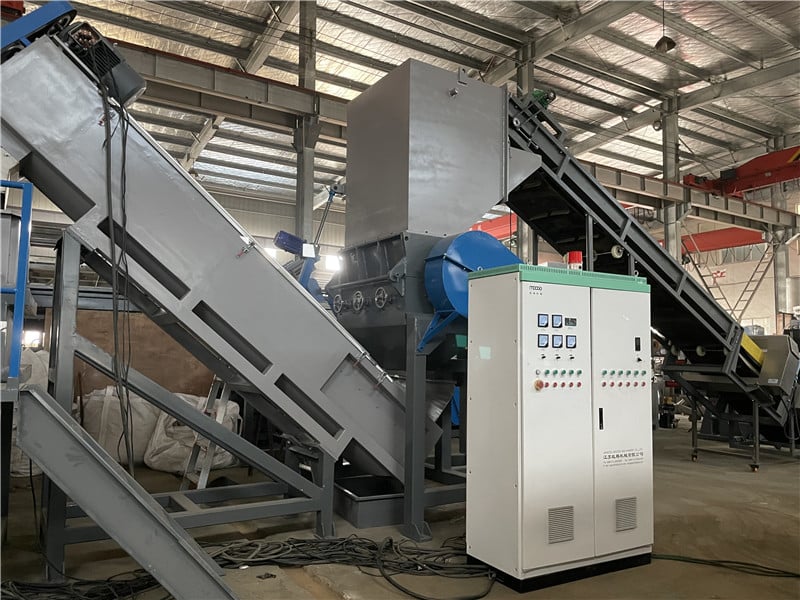

Plastic Crusher Machine

_{-Function: Crushing the materials into small flakes.
-With water inlet do wet crushing.
-The rotary and fixed blades inside the crusher are wider, it will save the blades cost.
-Use the big roller bearing ensure durable use.
-Bearing house is installed outside of the crusher chamber so no dirty goes inside.}

Friction Washing Loader

_{-Function: Friction washing the bottle flakes with water and loading up it.
-Up and down both mounted with bearing design ensure the low maintenance and long use life.
-With water injection system to cleaning the screen.
-Bottom with water drain system.}

_{-The machine part contact with water made by SUS 304.}

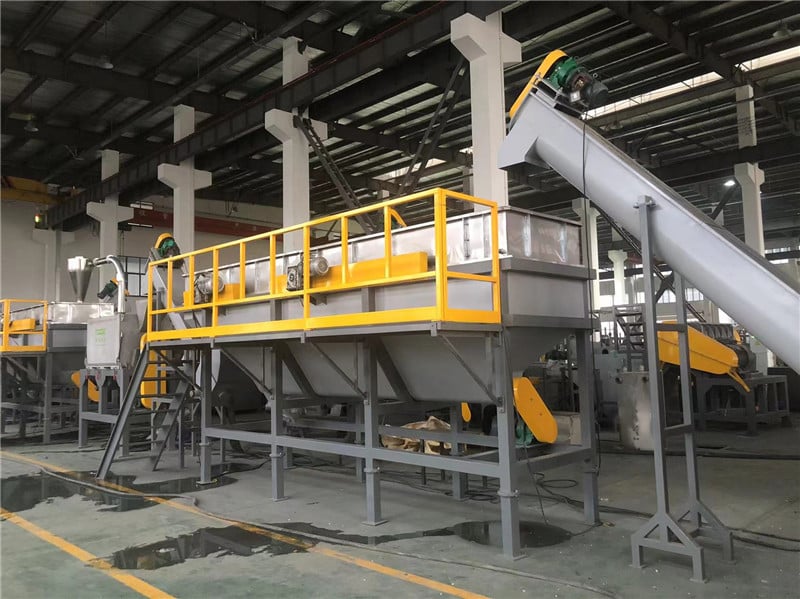

Floating Washing Tank

-Function: Floating washing separate the sand, soil and other dirty.

-The roller is specially made can have more washing for flakes but less water take out
-Bottom with positive and negative screw to push the dirty into the middle for easily drain out
-The machine part contact with water made by SUS 304

Horizontal Dewatering Machine

-Function: Take out dirty and remover water.

-With high rotary speed reach up to 1500 rpm.
-With the roller bearing and fixed outside of the rotor for long use life.
-Inside with mesh layer, mesh made by SUS 304 with the diameter 3 mm.
-With water spray system to clean the mesh.

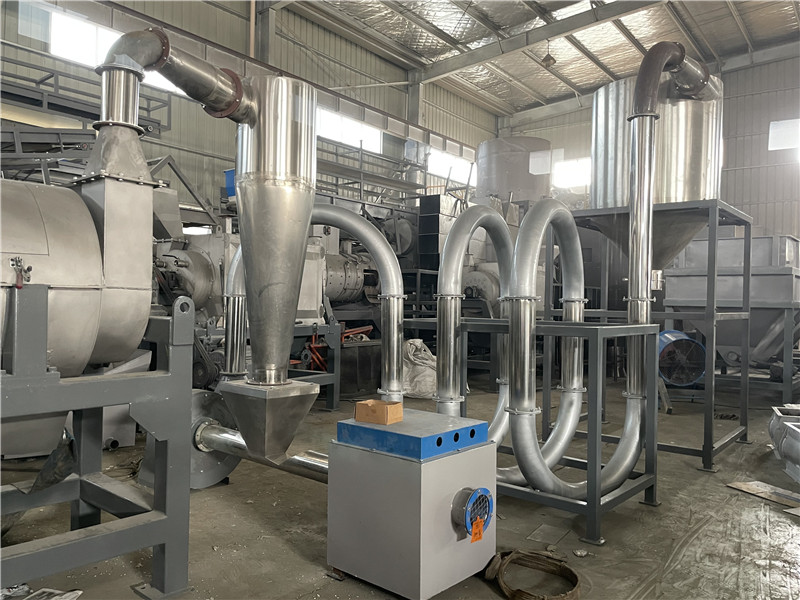

Hot Air Drying System

-Function: Further drying the bottle flakes with hot air.
-Heating by electricity, with one set of heating box.

-With one set of blower fan to transmit the flakes through the pipe.
-The pipe is made by 304 stainless steel.
-The pipe with bigger and more thickness elbow for longer use.

Customer Onsite

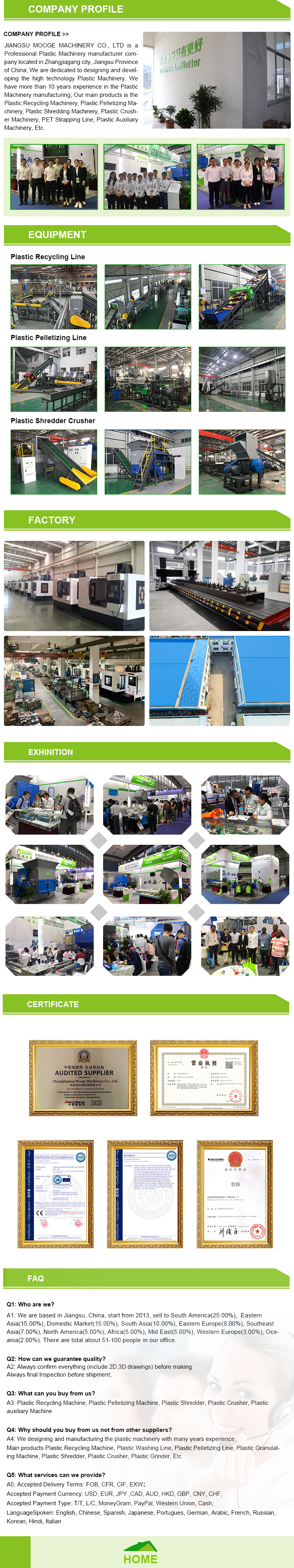

Company Profile
